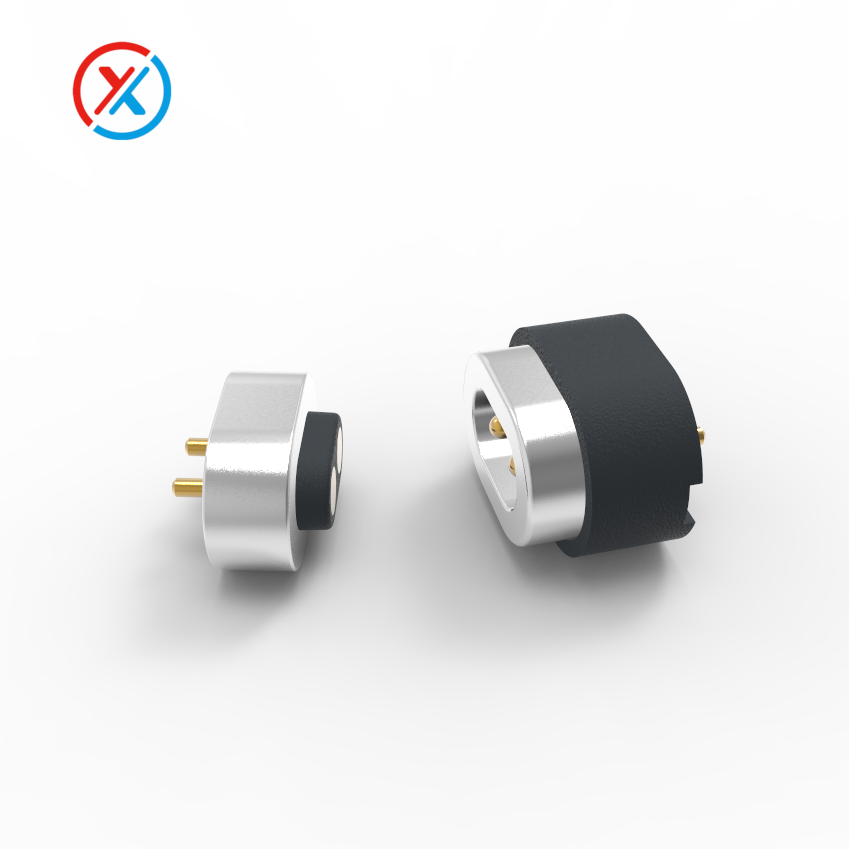

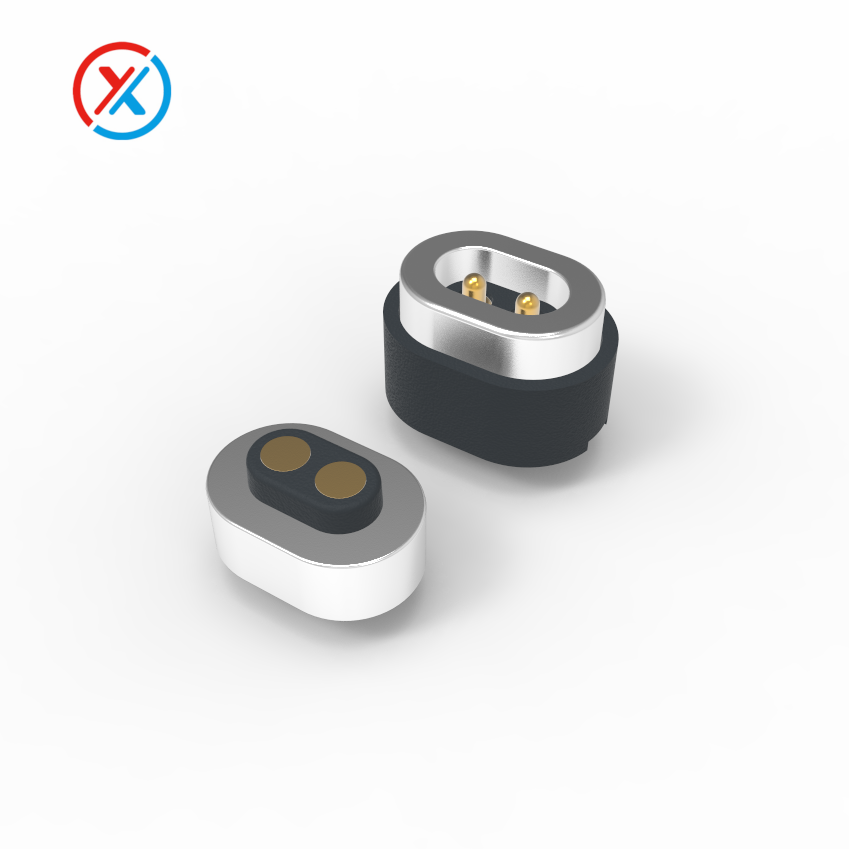

Pogo Pin Connector 2 Point / DC 2A Current
Product Model: SM800-2pin
Daily output: 50,000 sets
Certification:ROHS | REACH | ISO
E-mail: [email protected]
- Overview
- Inquiry
- Related Products
Note:
- Material and coating conform to ROHS and REACH standards

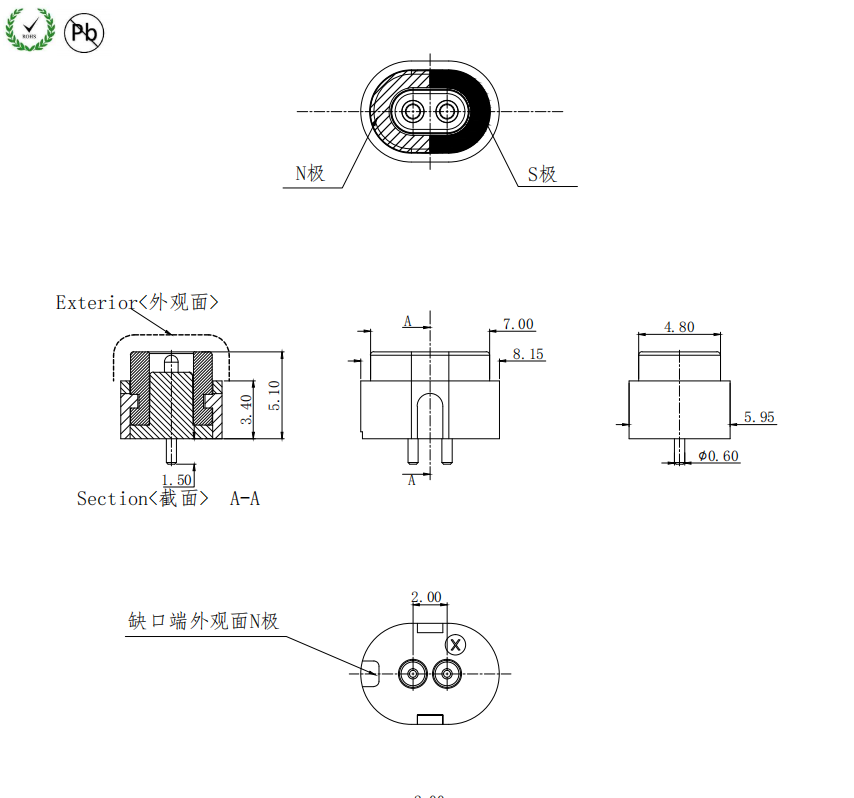

- @Key inspection dimension
| Mechanical | |
| Contact force | 40g士20g at 0.8mm working storke Full storke 1.0mm |
| Life test | 10,000 cycles |
| Electrical | |
| Rated voltage | DC 12V |
| Rated current | 2A Max |
| Contact resistance of spring pin | 50 milliohm Max |
| Environmental performance | |
| Operation Temperature | -25℃ to +80℃ |
| Salt Spray | 24H |
